The core control parts IGBT and DSP are selected from the world's top brands, and the response time is less than 5ms
Efficient engineering modular design, easier to cooling
Super protection function, fast hardware circuit protection for over-current, shut down PWM output within 2us, fully protect the IGBT module
Empowered by Cloud technology, it can realize long-distance real-time monitoring
With the rapid development of science and technology, power electric technology is constantly updated and applied to various occasions on a large scale, the requirements for the power system is getting higher and higher, and the traditional compensation method can no longer fully meet the use requirements for some impact loads. The new type of compensation product -Static Var Generator (SVG) uses a fully controlled semiconductor devices and grid-connected reactance, the controller detects the load current in real-time, and through the current decomposition algorithm and control algorithm, realizing the real-time two-way reactive power (100% inductive~100% capacitive) and imbalance compensation, which is a good solution to difficult problems in many occasions.
Based on the high power converter, the core is the voltage-type inverter, and the DC side uses DC capacitance as energy storage elements to provide voltage support. In operation, it is equivalent to a three-phase AC power supply with adjustable voltage, phase and amplitude.
The normal operation of the inverter depends on the voltage support of the DC side. When the inverter is connected into the AC power supply, each IGBT reverse freewheeling diode forms a rectifier to charge the DC capacitor. After normal operation, the energy storage of the DC capacitor will be used to satisfy the internal loss of the inverter, and the capacitor voltage will drop, the capacitor must be continuously charged to keep the voltage within the working range. Through changing the amplitude of the inverter output voltage to achieve the purpose of emitting or absorbing reactive power.
Compared to the first and second generation of reactive power compensation, the third generation SVG has faster speed, wider range of compensation (capacitive and inductive adjustable)
Fast response speed: the response time is less than 100us, it can complete the mutual conversion from capacitance reactive power to inductive reactive power in a very short time, and is fully capable of compensating for impact loads.
Good safety performance: the SVG is a current controlled type, and there is no possibility of resonance with the system impedance, which improves the safety and stability of the power system and equipment.
Good compensation performance: the same set of SVG can compensate positive sequence (capacitive and inductive), negative sequence, zero sequence reactive power, and can compensate corresponding harmonics and three-phase imbalance according to actual needs.
Good compatibility: the SVG can be combined with the traditional compensation method arbitrarily and controlled uniformly.
Power Supply Voltage | 400Vx (1 ±20% ) or 690Vx (1 ±20%) |
Power Grid Frequency | 50 x (1 ±5%) Hz |
Response Time | <5ms |
Overall Efficiency | >97% |
Target Power Factor | Capacitive and inductive adjustable |
Compensation Method | Reactive power compensation, harmonic control and three-phase unbalanced compensation |
Parallel Operation | Up to 5 nuits |
Operation Display | LCD control panel, operating parameter setting, touch button operation, multi-parameter display |
Protection Functions | Device overcurrent, over-heat, grid under-voltage, grid phase mismatch, DC busbar under-voltage, overload automatic current limiting protection |
Cooling | Forced air cooling |
Protective Class | IP20, other IP class can be customized |
CT Ratio | 150:5-10000:5 |
Operating Environment Temperature | -20C~ +50°C |
Color | RAL7021 Black sand pattern（other color can be supplied if required ） |
Relative Humidity | <90%(25°C) |
Noise | <65dB |
Communicaiton | MODBUS RTU（ RS485）Ethernet communication function is optional, upper computer monitoring software is optional |
Rated capacity | Model | Installation Dimensions（mm） | Installation Way |
（Kvar） | W×D×H | ||
30 | LESVG400-30-M | 560x550x220 | Modular |
50 | LESVG400-50-M | 560x550x220 | Modular |
75 | LESVG400-75-M | 560x580x220 | Modular |
100 | LESVG400-100-M | 560x580x220 | Modular |

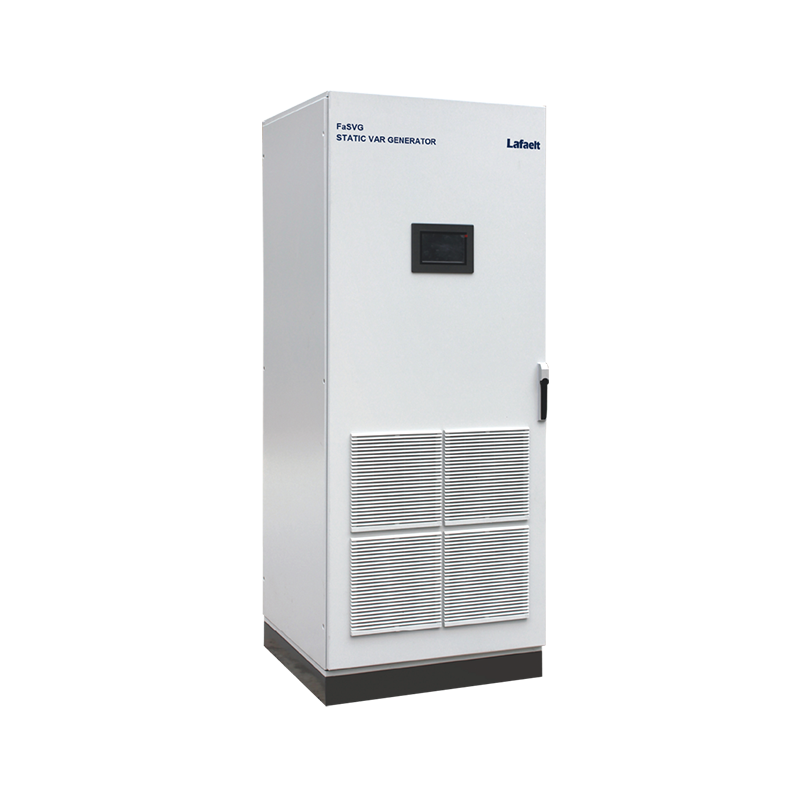

150 | LESVG400-150-F | 800x800x2200 | Cabinet |
200 | LESVG400-200-F | 800 x 800 x 2200 | Cabinet |
250 | LESVG400-250-F | 800x800x2200 | Cabinet |
300 | LESVG400-300-F | 800x800x2200 | Cabinet |
400 | LESVG400-400-F | 1000x1000x2200 | Cabinet |
500 | LESVG400-500-F | 1000x1000x2200 | Cabinet |
Rated capacity | Model | Installation Dimensions（mm） | Installation Way |
（Kvar） | W×D×H | ||
30 | LHG400-30-M | 560x550x220 | Modular |
50 | LHG400-50-M | 560x550x220 | Modular |
75 | LHG400-75-M | 560x580x220 | Modular |
100 | LHG400-100-M | 560x580x220 | Modular |
150 | LHG400-150-F | 800x800x2200 | Cabinet |
200 | LHG400-200-F | 800x800x2200 | Cabinet |
250 | LHG400-250-F | 800x800x2200 | Cabinet |
300 | LHG400-300-F | 800x800x2200 | Cabinet |
400 | LHG400-400-F | 1000x1000x2200 | Cabinet |
500 | LHG400-500-F | 1000x1000x2200 | Cabinet |
Model | LESVG400-500-F |
Main Components | LESVG400-100-M module *5 |
HMI *1 | |
High presicion sampling current transformers *3 | |
Accessories | Cabinet shell, MCCB, surge protector, terminal strip, date line |
| Classify | Title | Download |
|---|---|---|
| FaSVG SVG Operation Manual V2.1 | ||
| FaSVG SVG Operation Manual V3.0 |
